Interlocks
Interlock 1-4

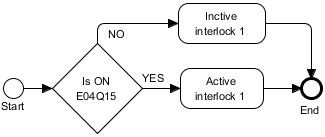

It prevents Disconnector connected to particular line of switching if the line is earthed. On the example the interlock check Earthing Switch E04Q15 and according it's position allow or disallow switching.
Interlock 5

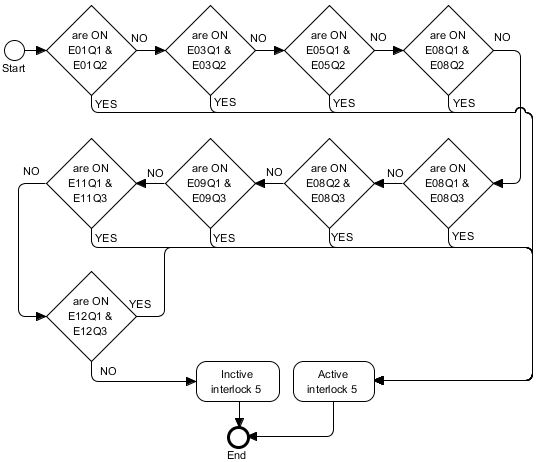

It prevents of switching off Breaker E06Q0 if there is a couple Disconnectors switched on at the same time.
Interlock 6-7

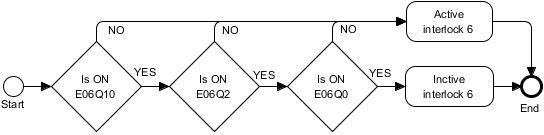

Usually couple disconnectors can not be turned on at the same time. Intrlock 6-7 allows it in specific cases. If the lines which the Disconnectors are connected to are electrically connected then both Disconnectors can be switched on. Example of this is changing the source without interrupting the power supply.
Interlock 8

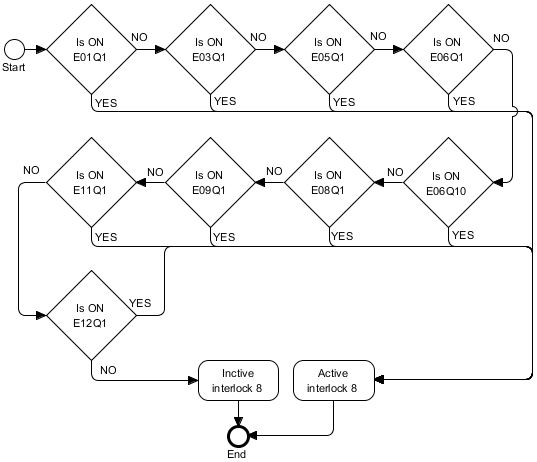

It prevents line BB1 of being earthed by checking current status of connected Disconnectors.
Interlock 9

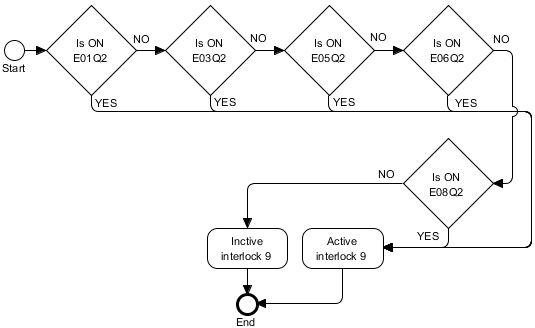

It prevents line BB2 of being earthed by checking current status of connected Disconnectors.
Interlock 10

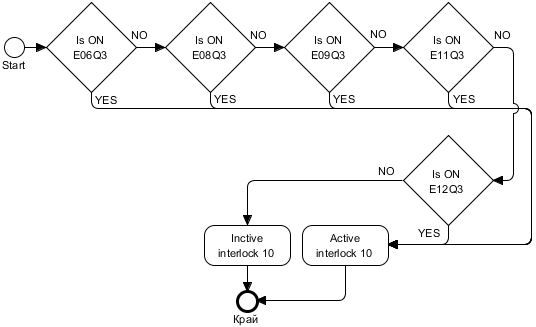

It prevents line BB3 of being earthed by checking current status of connected Disconnectors.
Interlock 11
It prevents backup line BB0 of being earthed by checking current status of connected Disconnectors.
Interlock 12

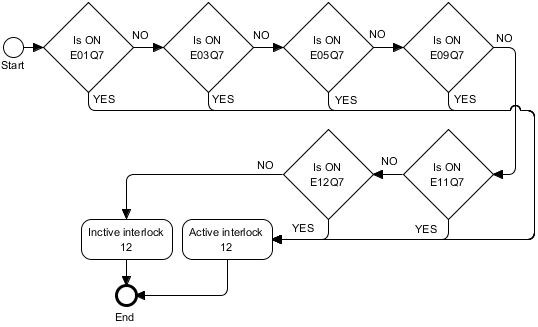

It prevents of connecting more than one line to backup line BB0.
Interlock 13

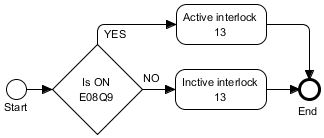

It prevents of switching Backup Disconnector if the backup line is on.
Algorithms
Algorithm E01Q1

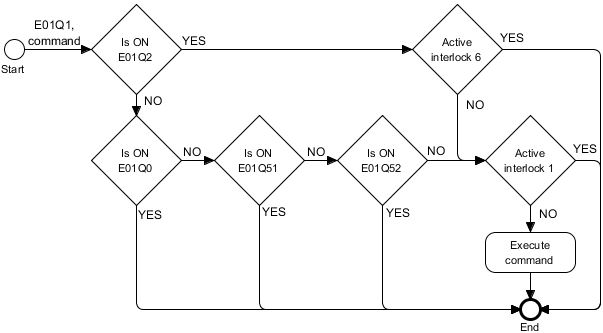

The algorithm applies to Disconnectors E01Q1, E01Q2, E03Q1, E03Q2, E05Q1, E05Q2, E06Q2, E06Q3, E09Q1, E09Q3, E11Q1, E11Q3, E12Q1, E12Q3.
Algorithm Q51Q52

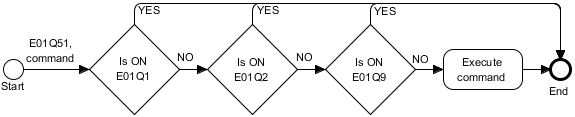

The algorithm applies to Earthing Switches E01Q51, E01Q52, E03Q51, E03Q52, E05Q51, E05Q52, E08Q51, E08Q52, E09Q51, E09Q52, E11Q51, E11Q52, E12Q51, E12Q52.
Algorithm E01Q7

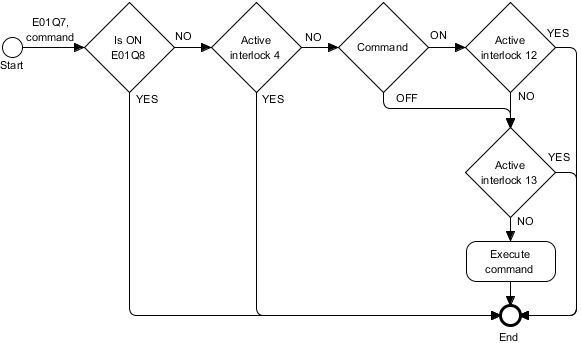

The algorithm applies to Disconnectors E01Q7, E03Q7, E05Q7, E09Q7, E11Q7, E12Q7.

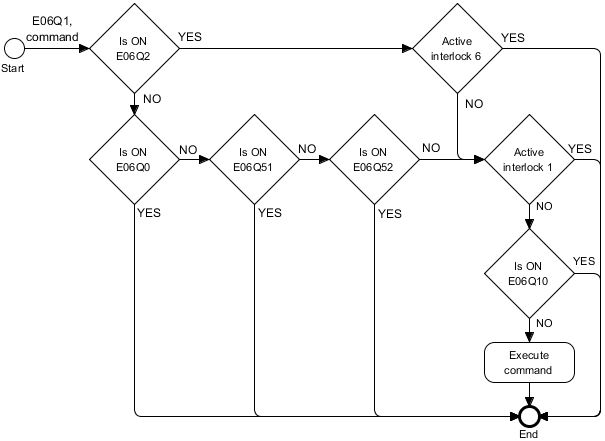

Algorithm E06Q1
The algorithm applies to Disconnectors E06Q1, E06Q10.
Algorithm E06Q0

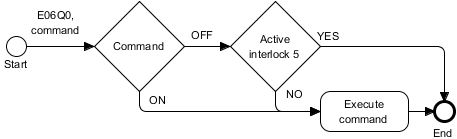

The algorithm applies to Disconnector E06Q0.
Algorithm E08Q1

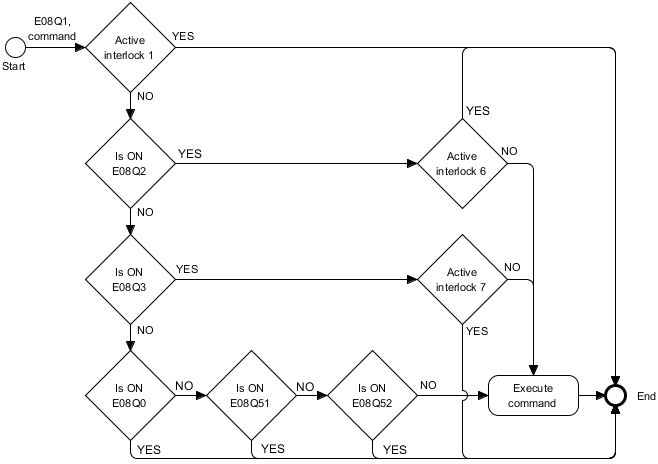

The algorithm applies to Disconnectors E08Q1, E08Q2, E08Q3.
Other Algorithms
Handling requests

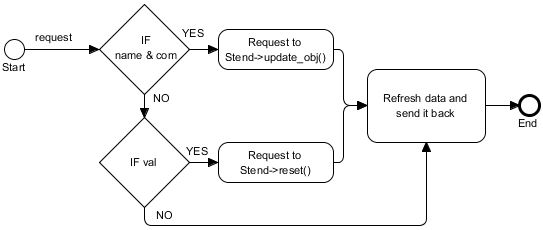

Algorithm handling server requests.

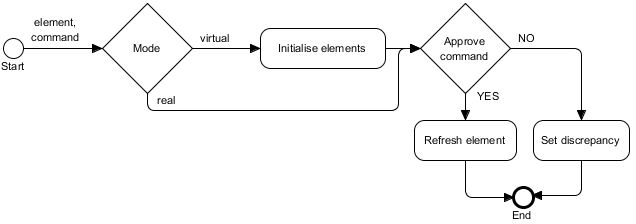

Updating Data
Receive, process and update data from a request.
Get Elements status

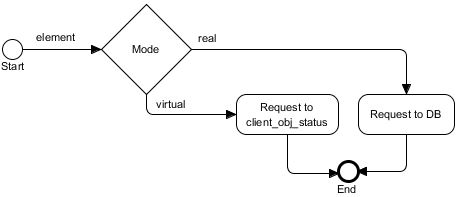

Check the status of an element - ON or OFF.
Reload Elements

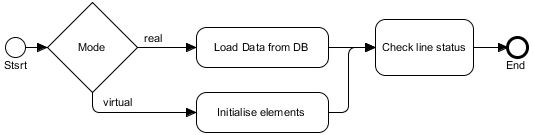

After processing data update element's status.
Setting Line Status
Setting Line Status for correct visual presentation.
